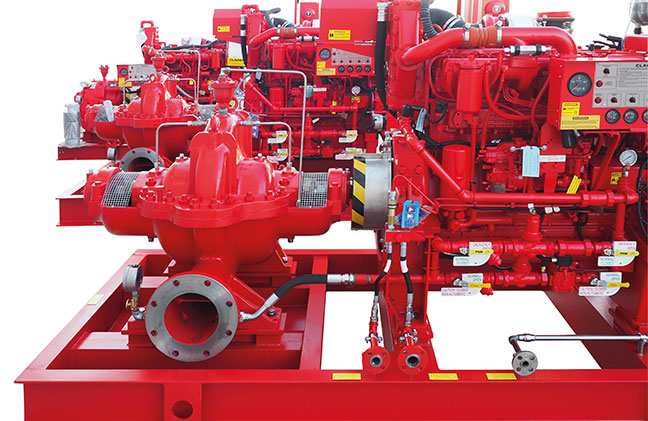

Electra NFPA-20 Diesel Fire Pump Cap: 750 US.gpm., Head : 120 psi

Electra Follow NFPA-20 Diesel Fire Pump
Type : Horizontal Split Case Centrifugal Pump
- Model : SP 100-30H
- Capacity : 750 US.gpm., Head : 120 psi., Eff : 73.5 %
- In / Outlet : 5" x 4" ( 125 x 100 mm. )
- Casing & Impeller Cast Iron, Shaft : Stainless Steel
- Seal : Packing Seal
- Cummins Diesel Engine
- Model : 4BTA 3.9-C : 125 hp., 2,560 rpm.
- Flexible Exhaust Connector, Muffler and Engine Pannel
- Fuel Tank 400 litre, Overflow Cone Size 4" x 6" (Local)
Tornatech Diesel Fire Pump Controller (Non List)
Supply : 2 ph., 220 V., 50 hz.
Equipment for Diesel Fire Pump
Durot Main Relief Vlave Size 4"
Weksler Vacumm Gauge ( -30 - 0 - 30 psi ) Size 4"
Weksler Pressure Gauge ( 0 - 350 psi ) Size 4"
- Goble Vision Flow Meter (FM Approved)
- Model : 6"-750 G (Grooved)
- Meter Range : 375 - 1500 US.gpm.
